Celestino Soddu
SIMULATION TOOLS FOR THE DYNAMIC EVOLUTION OF TOWN SHAPE PLANNING
(The Simulation of Dynamic Urban Development with Research Software That Generates 3d
Town Models which are Always Different But Always Identifiable as The Same
Environmental Town Shape)
OXFORD Polytechnic, 1991
ABSTRACT
The experimental research I have recently been doing springs from a question. It is
possible, with custom designed software, to simulate the dynamic morphological
variation of the urban image? And to simulate the development through time of formal
town evolution, time that is taken by irreversible architectural events and that
renders the urban landscape increasingly complex?
Yes, if we try to work directly with the instability of dynamic town systems, and
decline to base our analysis on the equilibrated moments that represent only (when
they occur) an accidental configuration in town time development.
This is a morphological approach that identifies the "modus operandi" of formal
transformations during time, and using algorithms, writes the rules of the dynamic
and chaotic system that draws the town image development.
This scenario of possible town development is made up of infinite number of
unexpected and dissimilar images.
Each image springs from an iterative process of formalisation which, ad each stage,
increases the complexity and randomness of the result.
The paper I propose, accompanied by images of scenarios of possible town environments
generated by my software (examples include medieval, technological and contemporary
metropolitan environments), explains and demonstrate this research, and its possible
application in urban planning.
I have published this research in my book:
Celestino Soddu, "Citta' Aleatorie", Masson Editor, Milano 1989.
Figure:

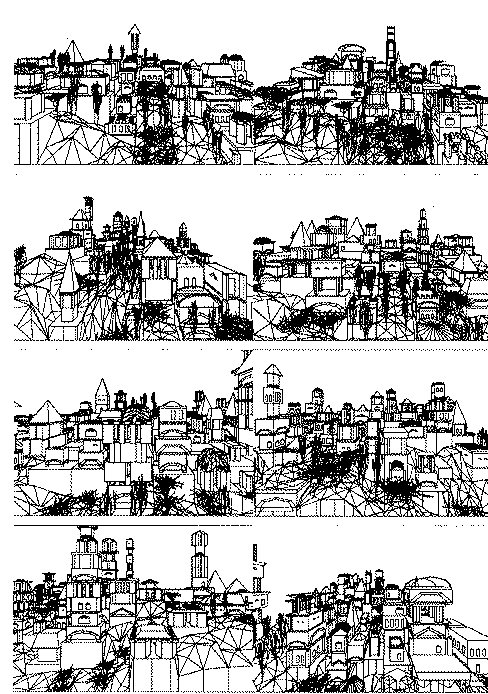

Sequences of ever different 3D models generated by the project of morphogenesis
"BORGO" realised as an original software by the Autor.
INTRODUCTION
The possibility of computer simulation of the dynamics of system evolution achieved
recently in many scientific fields has given a new stimulus to research. Computer
simulation applied to town planning modifies the traditional approach to this
discipline: experience and causal explanation. The problem of interchangeability of
reality with a formalised system, of passage from determinism to formal logic is
still open.
This paper is on the experimental utilisation of formal logic for the simulation of
urban shape development.
The software I present was developed, starting with the disequilibrium state of the
system (the presence of different architectural forms together with different stages
of urban growth, often contradictory), to simulate time and produce a series of
computerised three-dimensional models of urban shapes, identifiable as a whole as
"species" and differentiated as "individuals". These models represent the
multiplicity of possible scenarios of a town after a simulated evolution.
THE SIMULATION OF A TOWN SYSTEM
The development of adequate control and representation tools is necessary for a
systematic approach of the contemporary ever changing urban shape in order to
evaluate the morpho-genetic dynamics, the structure of the history of towns, that is
stressed by the architectural events, that are not reversible and modifies the
development of urban growth.
The displays currently used have an incontestable limit that is the difficulty of
examining one of the most important aspect of urban shape: time. A display that is
approximate with respect to time dynamism, that is limited in tracing and controlling
urban shape referring only to the stationary moment of hypothetical equilibrium,
denies the essence of town. It is an abstraction where urban-time is absent, frozen
into a reductive representation of successive moments of equilibrium.
Towns are, in fact, accumulations of events with different and often contradictory
objectives; their structures are unstable, their evolution unpredictable.
Instruments, capable of examining and testing the dynamics of transformation render
possible a positive approach towards the comprehension of urban structures. the
target is to operate into the morpho-genetic dynamics and not only into the
occasional modifications. If the purpose of graphic representation is to investigate
urban patterns and their progressive disintegration and/or requalification, the
instrument used should trace back and analyse the formation process of urban shape
through simulation of
the entire cycle. Every architectural event does, in fact, modify urban shape as
every urban shape modifies successive architectural events.
If we try to investigate on the cycle architecture/town evaluating the causes and
events that have determined every formal order, we will be in the impossibility to
continue our work. Every formal architectural detail is the product of a variety of
causes belonging to different spheres: cultural, technological, economical and
functional including subjective and casual aspects. Even if we leave out the
casualness of some choices, we will not be able to attain, with sufficient
approximation, a scenario susc
eptible of verification. This is due to the fact, that, to arrive at a cause and
effect relationship, it is necessary to analyse every cause. It means, for a town
system in its formal evolution, to analyse and evaluate every event, from urban and
economical choices to an unknown master builder who, centuries ago, changed the
original project, from political choices to carelessness that has caused the collapse
of a building.
The awareness of the impossibility of evaluating all the causes that brought about
the actual urban shape should bring us to operate within a specific field based on
form and its transformation in order to obtain more exact and pertinent results. This
implies the capacity of identifying a logical process to explain how and not why a
form is evolving, how and not why an aggregation of forms gives a recognisable urban
shape.
The results done within a specific field, using a multidisciplinary approach
transferred in the same formal logic, are more pertinent, verifiable and available
for utilisation in real situations. It is possible to have a direct approach to a
town formal dynamism and to follow its transformation using adequate algorithms. It
is not useful, for example, to analyse systematically all the causes that brought
about a town expansion in order to gave a model. It is less dispersing and reductive
to define the tra
nsformations that have taken place using an algorithm. This algorithm will produce,
on request, the successive contour lines of the town expansion based on preexisting
formal elements like traffic arteries, soil morphology, relations with nearby towns
and villages...etc.
This algorithm will be unveiled and identified inside the dynamics of successive
transformations without considering external causes and will always produce different
urban contour lines. Its correspondence to reality will be calibrated by means of
subsequent verifications done on a sufficiently large number of results. The
algorithm should be adopted only when all simulated transformations, in their
evolution are congruent with a specific "species" of urban configuration. Every
configuration, although p
roduced randomly and unpredictably, should be identifiable as part of an entity that
can be found in reality.
The same approach is used for the transformation of a square. An algorithm, capable
of representing possible transformations between buildings and open space can be
traced in order to generate different architectural solutions having the same size
and form requisites and respecting the characteristics of the square.
This approach, which is exclusively morphological, allows to reproduce the complexity
of urban shape in its morphogenical dynamism. However, can this be used in reality?
Can it become an operative tool for the control of growth and evolution of the cities
we live in?
Like all mathematical and formal models, those that represent the logic of urban
evolution are an effective tool to simulate interactions. Any variations in the model
generates transformations that can be analysed and evaluated in relation with time.
Each result is identifiable and characteristic and always reflects the identity of a
single town. Each result is like an "individual" and each series of results like a
"species".
To represent the "species", instead of the "individual", offers many advantages.
First of all, it allows us to evaluate to what degree a few and limited changes can
interfere, after a simulated time, in urban shape through the infinite series of
transformations produced. It can also help us to identify the phase in which our
model produces transformations such as to bring about the loss of a town identity.
What are the characteristics of a formal transformation of a town system and how can
it be represented and simulated?
RANDOMNESS AND EVOLUTION, INSTABILITY AND TIME
As clouds, towns evolve with time, expanding, contracting, transforming themselves,
their image, their characteristics under economical, cultural, political and
technological impulses. It is easy to predict, in short terms, the development of
towns, as for any natural system. Everything happens according to precise rules
deriving from urban planning, current technology, economical and social influences.
However, previsions are almost impossible in long terms since towns are inhabited by
man and that each choice, each successive step brings about margins of subjectivity
and unpredictability. This subjectivity produces one of the most important
characteristics of urban shape: formal diversity of solutions responding to the same
necessity.
It must be remembered that most subjective and casual aspects of decision making have
little influence and will disappear in the subsequent transformations of a town.
However, some events or marginal aspects will persist and because of concomitant
casual circumstances they will assume more and more a capacity of influencing the
course of future development. This influence, once it has been consolidated becomes
irreversible and can outgrow the importance of the event that caused it.
Some architectural forms, originating from contingent, casual or subjective choices
very often loose their raison d'etre and become pure formalisation of relations
between following events; they often disappear surviving only as a trace, as a
testimony of the passage of time leaving a strong characterisation of urban shape.
Piazza Navona, in Rome, is a good example of this continuity. The form, the
dimension, the sequence of the various architectural structures of Piazza Navona have
been determined by a building no longer existing and little is known about its past
function. This building has had an irreversible influence since its form has
conditioned the surrounding architecture and has contributed to the formation of one
of the most fascinating places of Rome.
Other Roman buildings, from the same period, conceived then to have a greater
influence on urban development, as for example Trajan Forum, did not have the same
fortune.
Of many fragments breaking off from a glacier, only a few, at random, become
avalanche and only a few avalanches can modify the environment and only a few forms
in the environment have the capacity of fascination due to the casual contribution of
rivers, winds, vegetation and why not architecture.
All this is not predictable since the succession of ever growing changeable events
cannot be predicted and above all because the casual, subjective event that may
become incisive on the whole system cannot be imagined and be clearly defined in
advance.
The system is not predictable, however, it can be represented through numerous
simulations done in order to produce a large variety of possible results.
My research introduces a mechanism/software for the simulation of time in a
system-town whose instability is due to the complexity of objectives often
contradictory. This mechanism should produce an endless series of urban events
temporarily parallel and recognisable as different "individuals" from the same
"species".
This implies, as it happens in current scientific research, to abandon the idea of
the possibility of identifying and defining an order capable of assuring, with time,
an urban characteristic, if this order takes form from a static evaluation, from the
analysis of one moment of equilibrium leaving out the dynamics of time. The
evolution, and also the time, starts from the system unstableness.
Urban growth can therefore be more appropriately analysed if it is represented not as
a temporal stratification of successive equilibria but as an unstable system that
proceeds through irreversible changes even if it keeps a modus operandi than can be
individualised and characterised. This instability, once it has been represented
mathematically, is the characteristic of an unpredictable dynamic system.
Towns, in other words, can be considered as complex entities that can be
individualised in their uniqueness and above all, as entities in evolution capable of
modifying their form in an unpredictable way.
Evolution, the passage through irreversible events and morphogenesis are
characteristic of urban form but also of living beings. Towns are not, in fact,
notwithstanding their artificiality, very different, from that point of view, from
nature and, according to the trend of current scientific debates, can be considered
living entities.
The scientific debate on what has to be considered a living entity is still open.
Every single cell of the human body can be considered a living entity given its
independence and evolution capacity but the entire earth can also be considered a
living entity. Towns, in this sense, are also capable of self-regulation and
evolution but also of controlling modifications and variations of a growth model
maintaining their identity through history, and must be considered living entities
that can be represented a
nd analysed as such.
The dissipation process of evolving entities like towns (and like the universe, the
earth, animal and vegetable species...etc) does not, however, produce disorder (the
necessity to have entropy and disorder coincide no more prevails, see Ilya Prigogine
in "The Birth of Time") but irreversible transformations that testifying the passage
of time, produce new forms bringing about evolution.
A particular disequilibrium state is characterised by the presence of irreversible
events and can also be analysed and represented only by a dynamic simulation of the
system and of time generating modalities. Casual and contingent aspects will
afterwards give the identity of each single town.
Some considerations on the manner of dealing morphologically with the transformations
of contemporary metropolitan image can be made.
One of the aspects that, today, is considered negative in urban development is the
progressive loss of image of formal characterisation. This aspect is surely linked to
the increasing complexity that each city must face in order to respond to
contemporary challenge.
We must, first of all, choose to operate inside the individual sphere (each single
town in its uniqueness) or inside a "species". It is obvious that some aspects of the
deterioration of urban image are contingent and are due to the peculiarities of a
local situation; however, these aspects are secondary with respect to the
deterioration of urban image affecting indiscriminately towns with extremely
different structures and traditions.
One can therefore ask if and how every town system, in its evolving structure,
already include inside its formal logic the possibility of loosing or acquiring an
image, if a loss of image has to be considered reversible or not and if it is
possible to control the parameters of this transformation.
REPRESENTATION OF URBAN DYNAMICS. VIRTUAL UNPREDICTABLE TOWNS.
I have developed an experimental tool which offers the possibility of computer
simulation of the formal dynamics of town system identifying its particularities
starting from the instability of the system and simulating the transformations of
urban shape through time.
I have designed an original software to produce computerised three-dimensional models
of possible urban patterns. These models, although they are produced with the same
series of algorithms, are always different and unpredictable.
The models can be visualised using different techniques (prospective, curve
prospective, total cylindrical prospective, axonometry,...etc). They give an
unequivocal view of possible utilisation of unpredictable growth patterns.
The capacity for irreversible events to modify the structure of urban growth system
is represented by the plurality of formal potentials, of scenarios that the system
can produce.
The experimental software developed is therefore and instrument capable of generating
dynamic sequences of urban shapes through time. It offers an almost infinite variety
of possible shapes, thus realising a pertinent representation. The objective is, in
fact, to illustrate the dynamics of development of urban shapes, not to concentrate
on one single ephemeral moment of equilibrium.
Urban scenarios B1, B2 and Bn at a time T+t are obtained from scenario A at a time T
through simulation. let us analyse this process first, in its entire structure and
then, step by step.
Scenarios A and B do not represent moments of equilibrium of the system but moments
of desiquilibrium as they include the presupposed conditions of dynamic evolution.
Time, in fact, (Prigogine op.cit.) can originate only in a dynamic system in a
disequilibrium state.
What does this assumption mean for the urban system we want to represent? The
algorithms I have used for the initial urban scenario are not only different and
autonomous but can also be contradictory. And not only each single algorithm but also
the series of algorithms, that are not reciprocally integrable. For example, the
series representing the logic of urban growth can be contradictory with the series
for architectural formalisation.
The simultaneous or cyclical utilisation of these series (whose simultaneity goes
towards disequilibrium) gives rise to the virtual beginning of time.
Each new architectural form modifies the urban shape, each new urban development
influences the style to come, contributing irreversibly to a town history.
Although the process occurs within the same logic, each simulation starting from
scenario A produces different scenarios B. The fact that each scenario B derives from
A renders all scenarios B recognisable as "species" and the urban image produced is
always recognisable as belonging to a particular town.
Let's see, in more details, how morphogenical simulation is carried on with the
passage of time in the history of a town. To simulate the passage of time, it is
necessary to define an initial situation of disequilibrium to begin a series of
transformations. The initial situation of disequilibrium is determined through a
series of disconnected algorithms representing different development sequences, often
contradictory but that must operate simultaneously. The increasing complexity in the
tracing of urban
shape simulate the series of irreversible events in the history of a town.
Let's follow this cycle starting from any point, for example a new architectural
form:
1. The urban context generated until this moment, A, is confronted with a series of
algorithms in progress (SCENARIOS/n) operating to represent the possible/desiderated
delineation of a every new urban shape.(the valuation of quality in made through the
difference between actual context and desiderated context, that is ever in progress:
SCENARIOS/1, 2, 3, 4, n).
2. The result is a series of growth requests corresponding to the expectations of
SCENARIOS/n with respect to A.
3. These growth requests are directed to a series of algorithms representing one of
the logical pathways adopted for the formalisation of the architectural object (SAn).
SAn makes an evaluation of functional interstices and margins of feasibility inside
the framework. These margins are defined as design opportunities to increase shape
complexity that goes beyond the programme requests.
The formalisation is made by the software not using a data base of elements, because
this kind of answers are predictable and so, not suitable for a dynamic process.
The process occurs activating simultaneously many different devices (formal,
geometrical, dimensional, integrators of complexity, etc.) that are autonomous, not
necessarily congruent between themselves.
4. The result of this operation is an architectural event more o=/9 or less
exceptional depending on the randomness of the generating instruments. This event is
then confronted with SCENARIOS/n that evaluates its acceptability. If the event is
normal, it is accepted and if it is exceptional it can be accepted or not according
to the availability registered in SCENARIOS/n. If it is not accepted, we go back to
point 3.
5. The event is inserted in the context. A becomes A+1. The event becomes
irreversible. In fact, even if it is eliminated afterwards, it has existed and has
conditioned the urban shape evolution.
6. SCENARIOS/n must be adjusted after this irreversible modification. SCENARIOS/n
becomes SCENARIOS/n+1. It can be a matter of simple adjustment if the architectural
event is to be considered normal, however, in the case of an exceptional event it can
be necessary to modify substantially some proposals of SCENARIOS/n: This requires the
passage from a form to another one and can be represented using the theory of
catastrophes (Rene' Thom) related to discontinuous changing processes. This variation
can be d
escribed as the passage from an attractor to another one recognising the attractor as
a model capable of representing the formal characteristics of an event in a dynamic
sequence.
7. The context A+1 is then used starting again from point 1 and continuing until time
(t) has been entirely simulated and the initial shape transformed into A+1.
I used this approach to simulate the urban development of some towns, identifying and
reconstructing the elements of disequilibrium in their evolution.
The aim of my research was not the reconstruction of an unstable dynamic system to
simulate the evolution of an existing town, although this is of its possible
utilisation, but the individualisation of the structures of a town transformation and
representation of the characteristics of dynamic transformation of urban events
through a simulated time that initiates with the simultaneous presence of various
development pathways. The disequilibrium found in the initial phase is due to the
simultaneous presenc
e of different and very often contradictory dynamic particularities.
The logic of urban growth, of composition and control of exceptions pertinent to the
dynamics to simulate is set in motion. The following representations are, after a
first moment of hypothetical sequences, absolutely unpredictable.
The dynamics of development of a system in disequilibrium goes through a series of
events capable of increasing the margins of randomness present in a choice and often
of modifying the characteristics of the system. The system proceeds through
successive bifurcations and its potentiality (due to different alternatives) goes
beyond the reasons that have determined the choice. Once the choice is made, the
series of events becomes irreversible and can even condition and modify the entire
system.
The programme output is a series, almost infinite, of urban shapes that refers to the
image of a town after a certain period of time. Each shape shows a possibility of
urban development. The operative utilisation of this software originates from a kind
of approach not reductive to the complexity of a town system. The software can be
used directly in town planning especially to control the quality of the environment.
The Author
Return to the first page
Mail to Prof. Celestino Soddu
